Description

Product Overview

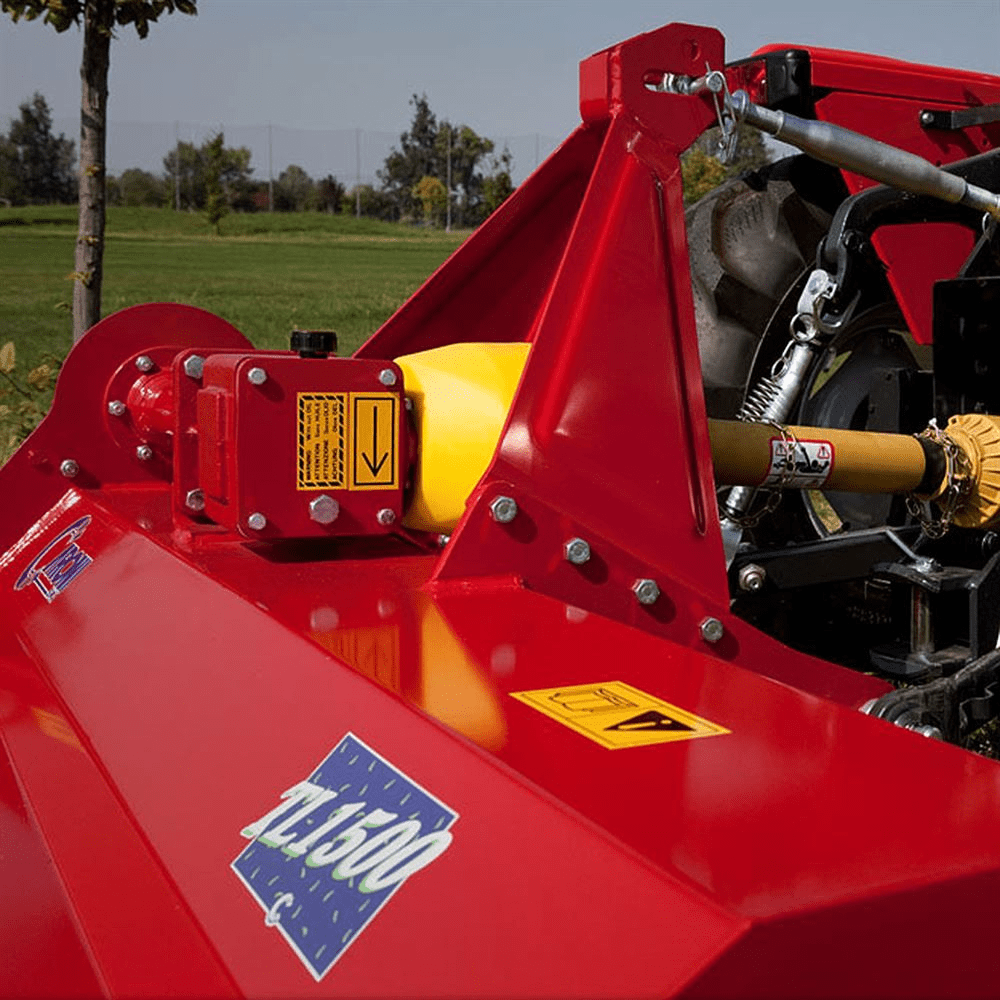

The flail mower guarantees the correct cutting height by using an adjustable rear roller and a scraper, which keeps the mower clean. A set of side skids are supplied to suit the various different types of terrain. The flail mower has mounted steel protections as a standard to safeguard the driver when the rotor is in operation. The fixed hitch allows the mower to be used with any type of tractor. It is ideal for use with tractors ranging between 20 and 40 HP. The PTO speed is 540 RPM and the mower has 88 blades for the 59″ cutting width. The mower weight is 485 lbs.

Specifications:

• Caroni Flail Mower, 3-point
• Part Number: TL1500FSC
• 59″ cutting width
• 88 blades
• Has rear rotation
• 20-40 HP
• 550 lbs.
• Fixed hitch has 8-1/2″ offset
• For replacement hydraulic shift kit use ASC # 68318 Hydraulic Shift Kit

Parts Breakdowns:

• 59″ Flail Mower – TL1500

Additional Information:

• The minimum cutting height is 20mm to 250mm
• Caroni Flail Mowers TL & TM Series – Brochure

Product Downloads

•  Full Product Manual
•  Replacement Part List
